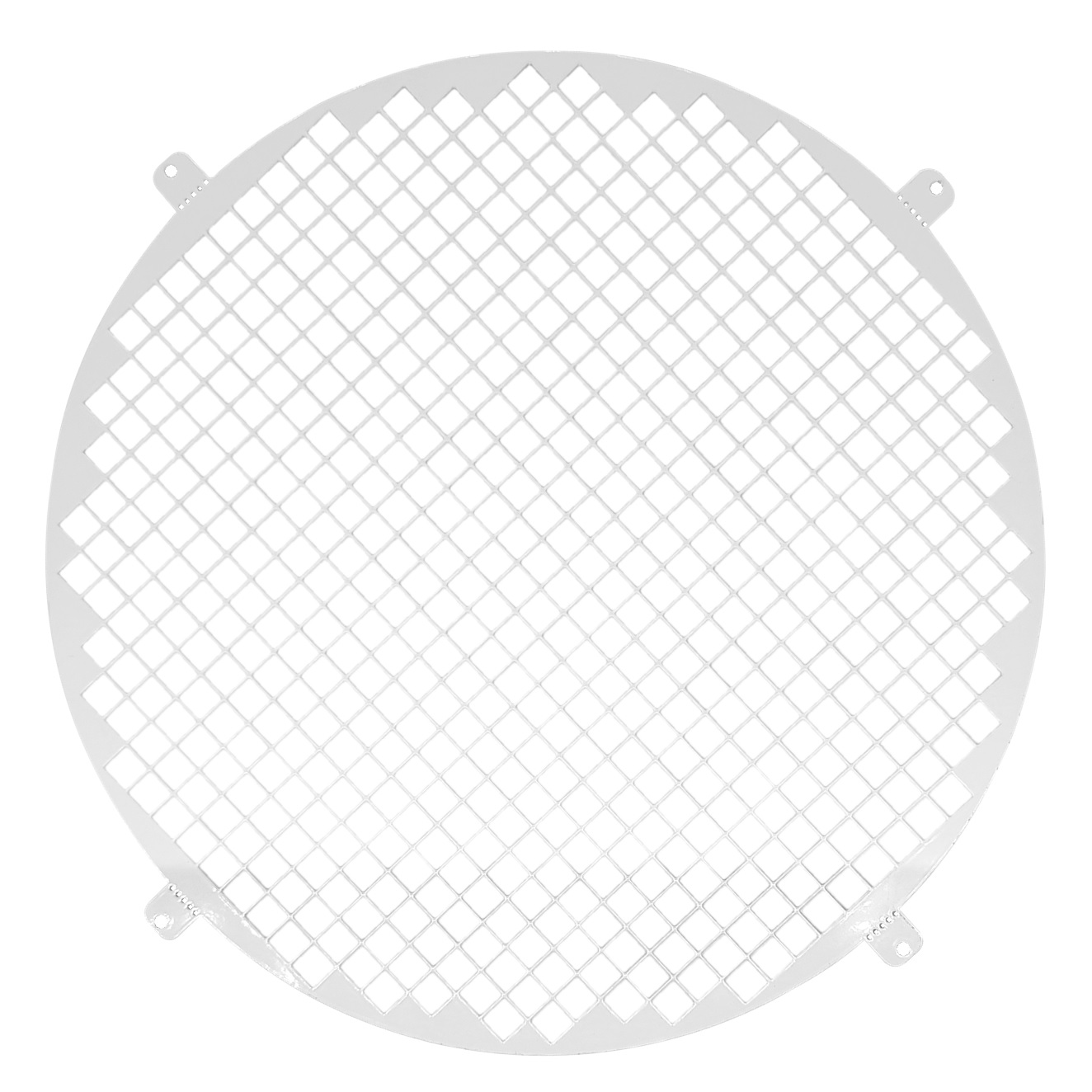

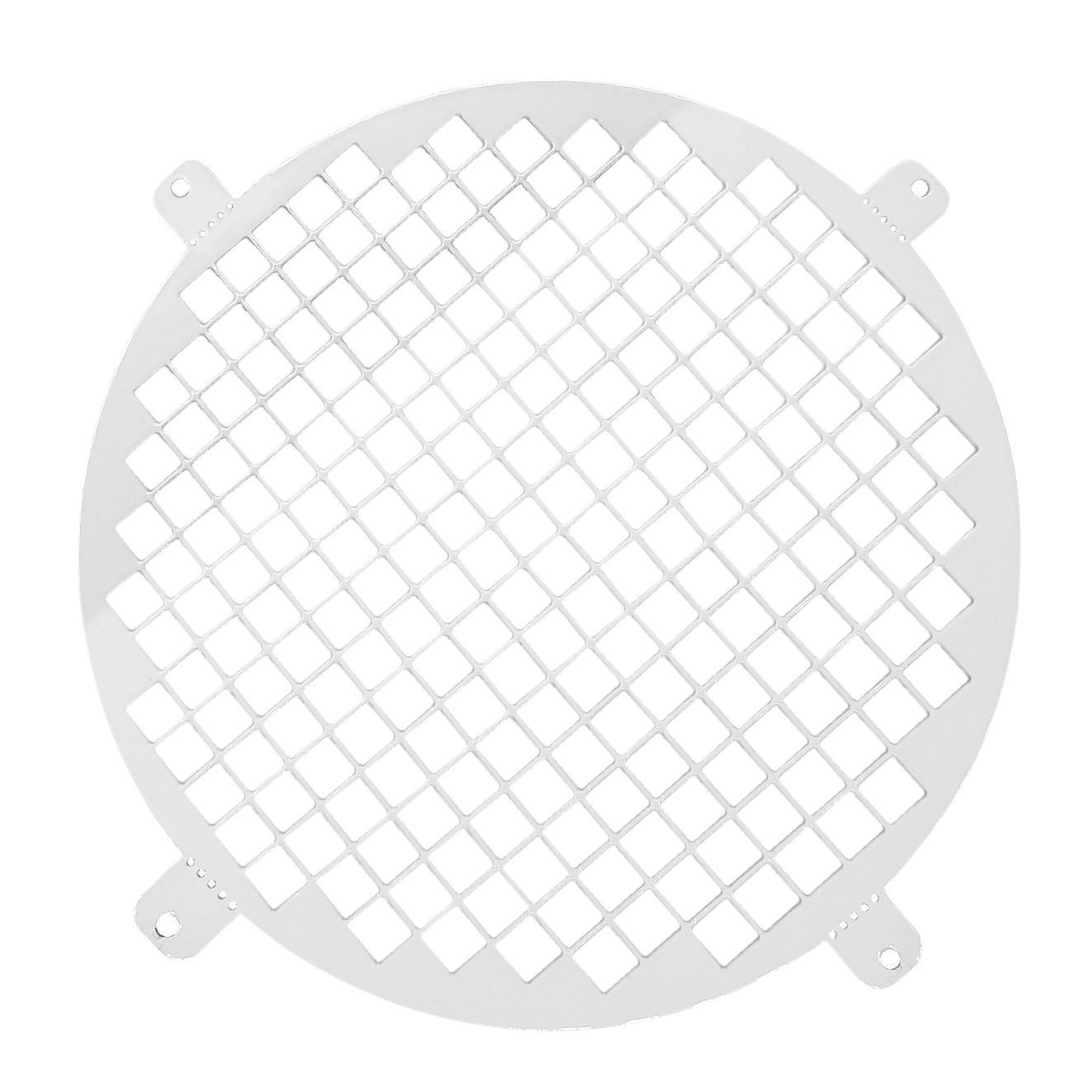

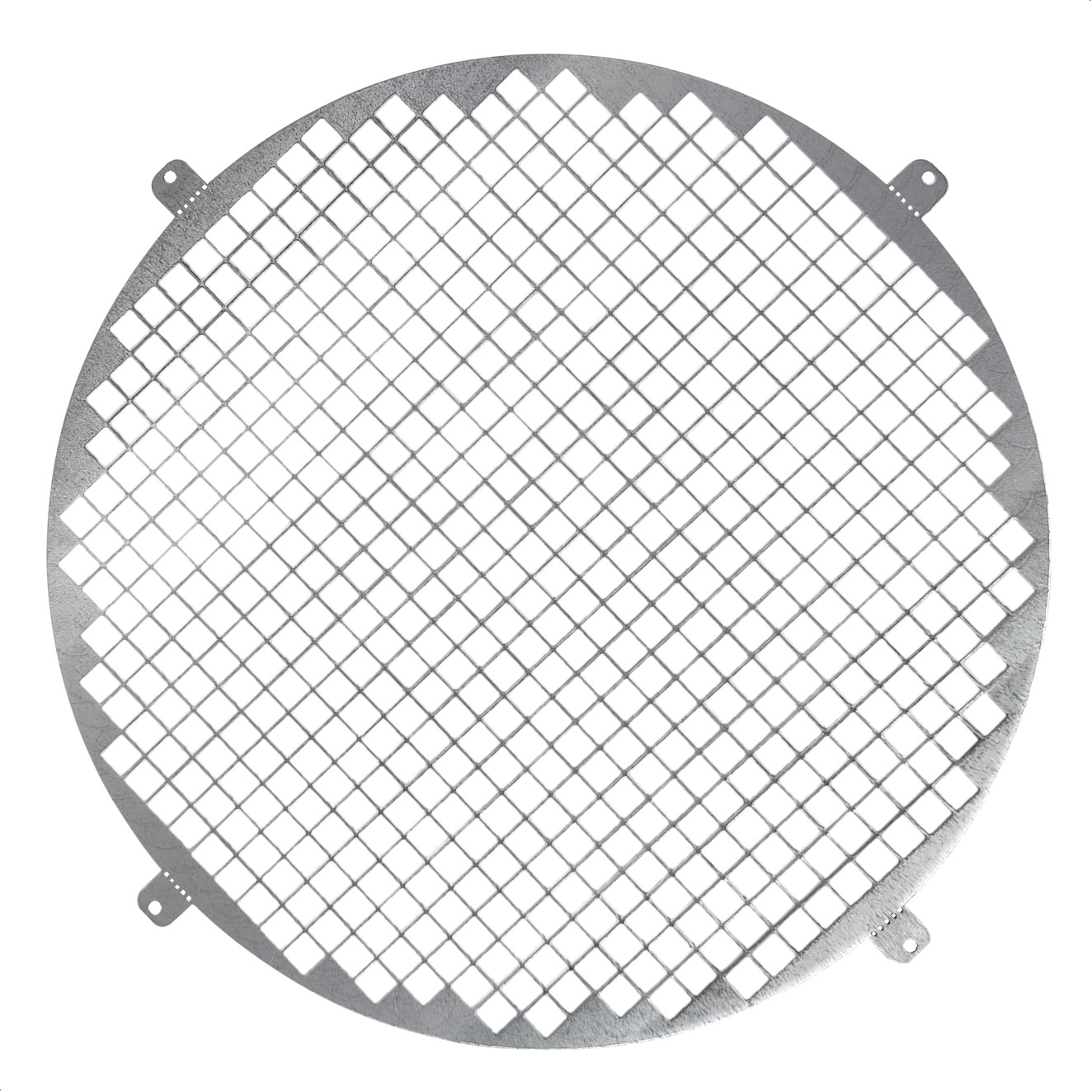

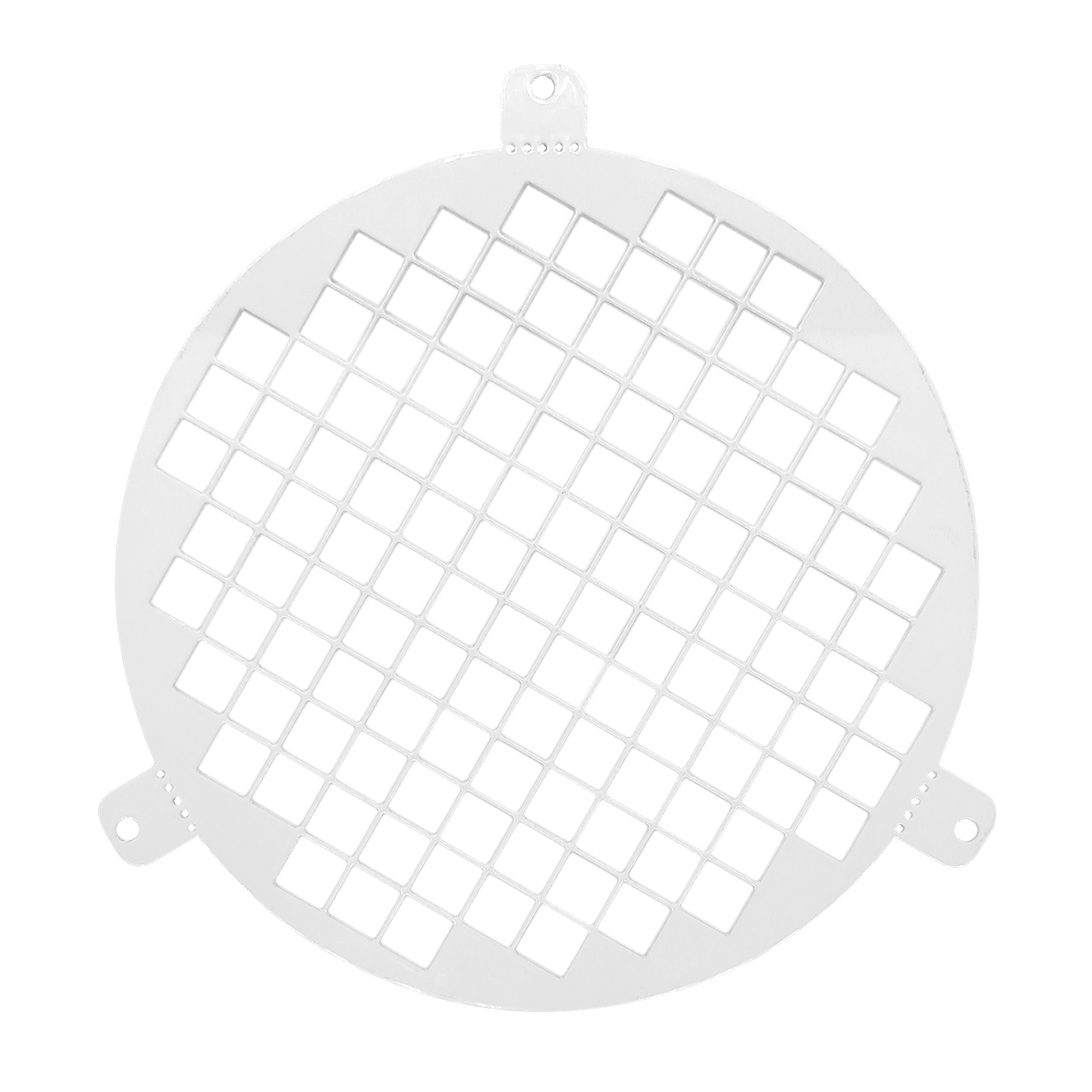

metal sieves - grilles LSMØ
Construction:
- Made from galvanized steel or other metals
- With polymer paint coating
Installation:
- Screw fixing to the wall or air duct
Colors: White, black, metallic
Universal round metal sieves - grilles EUROPLAST LSMØ for supply and exhaust ventilation systems. Protects from practicles larger than 10 mm
| Article | Description | EAN | Connection | |
|---|---|---|---|---|
|
LSM100M
|

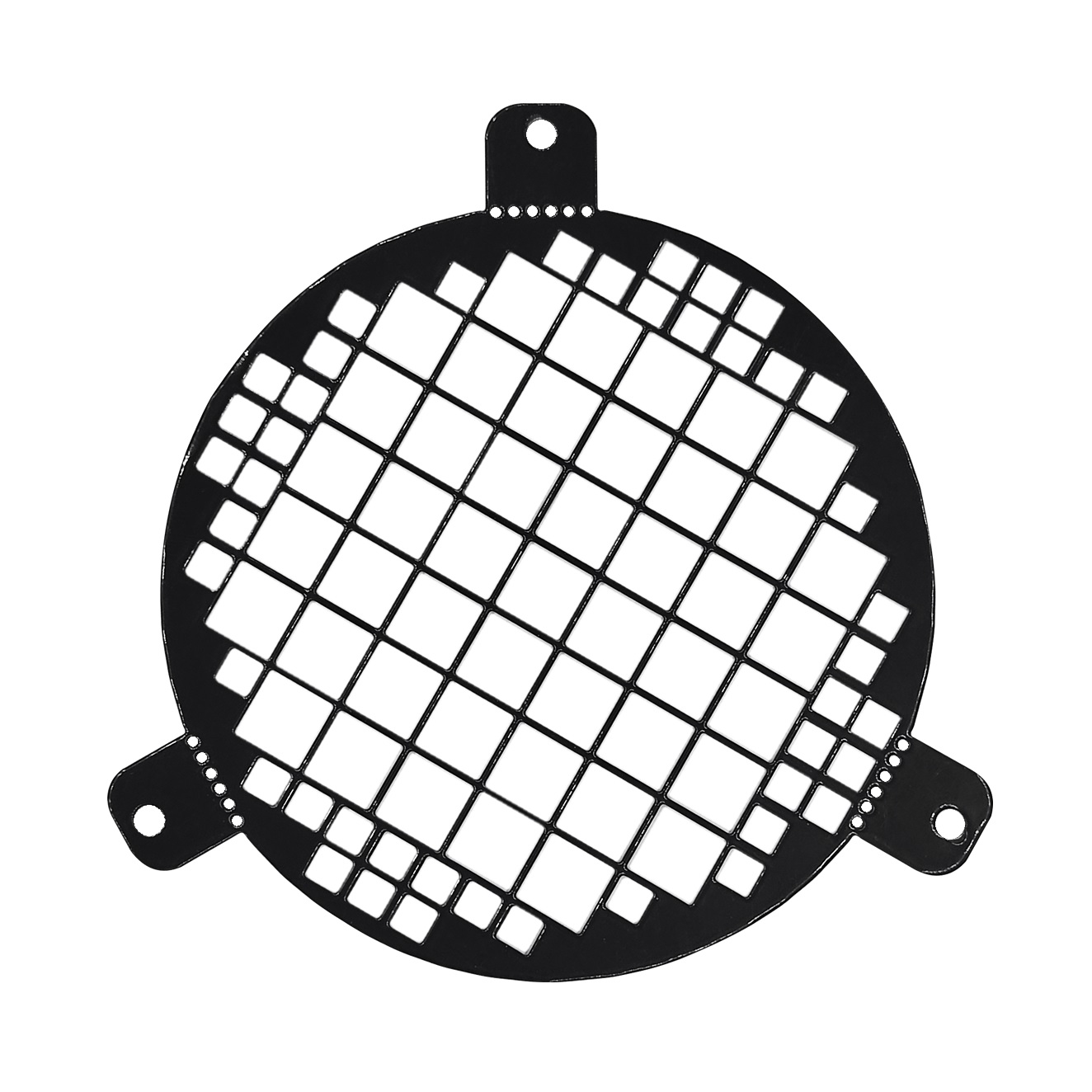

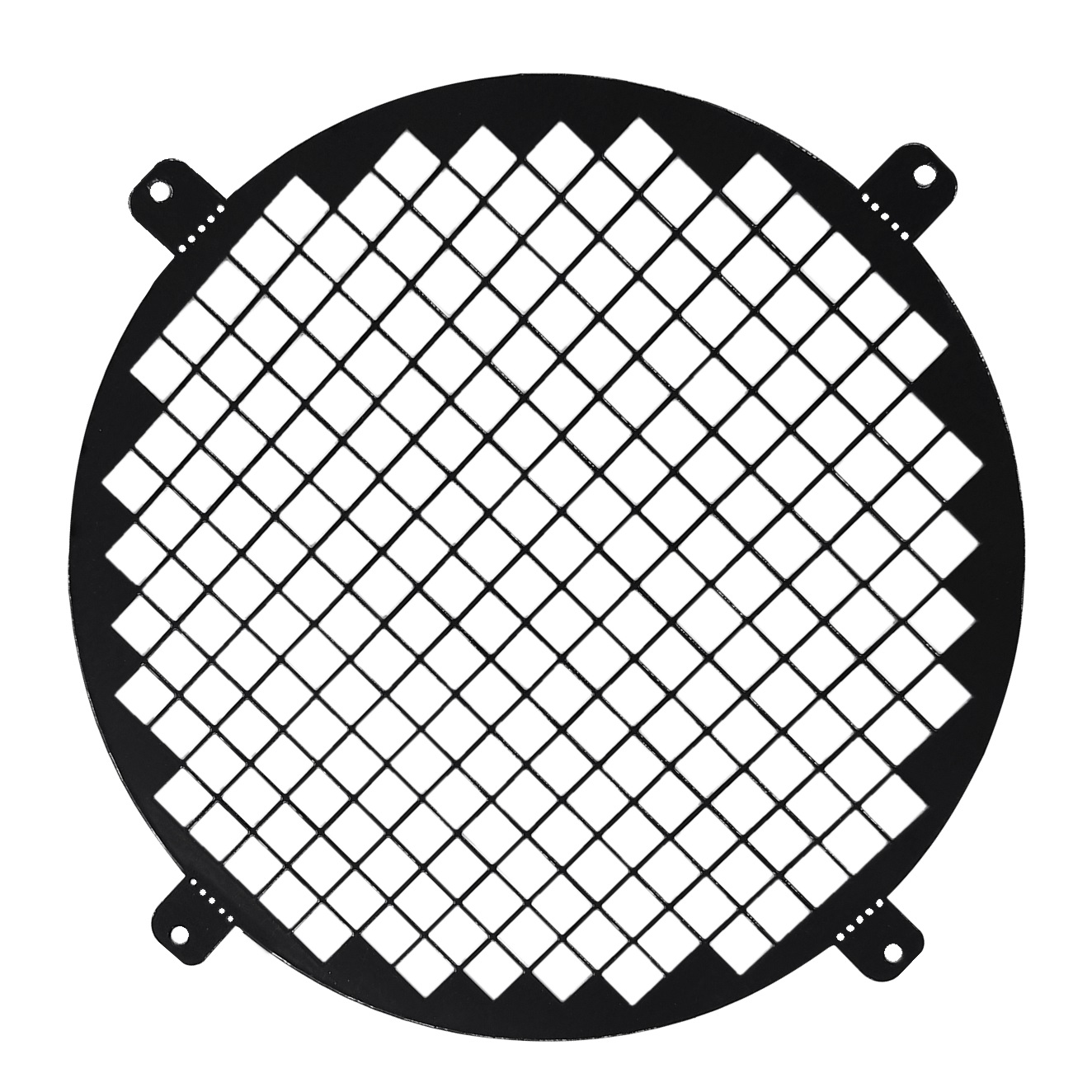

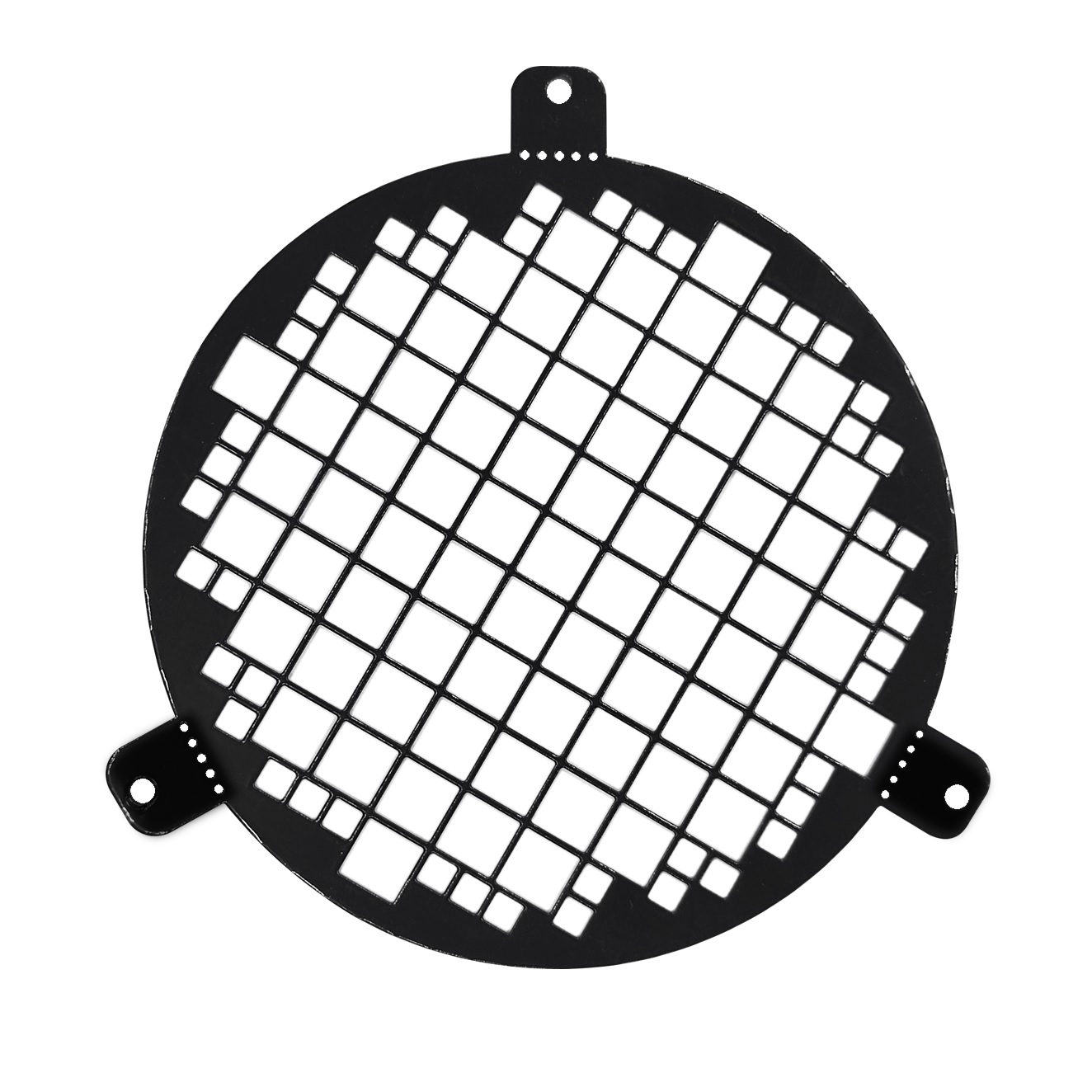

sieve - grille metal, Ø100mm, black
|
4750492028407
|
Ø 100 mm |
|
LSM100Zn
|

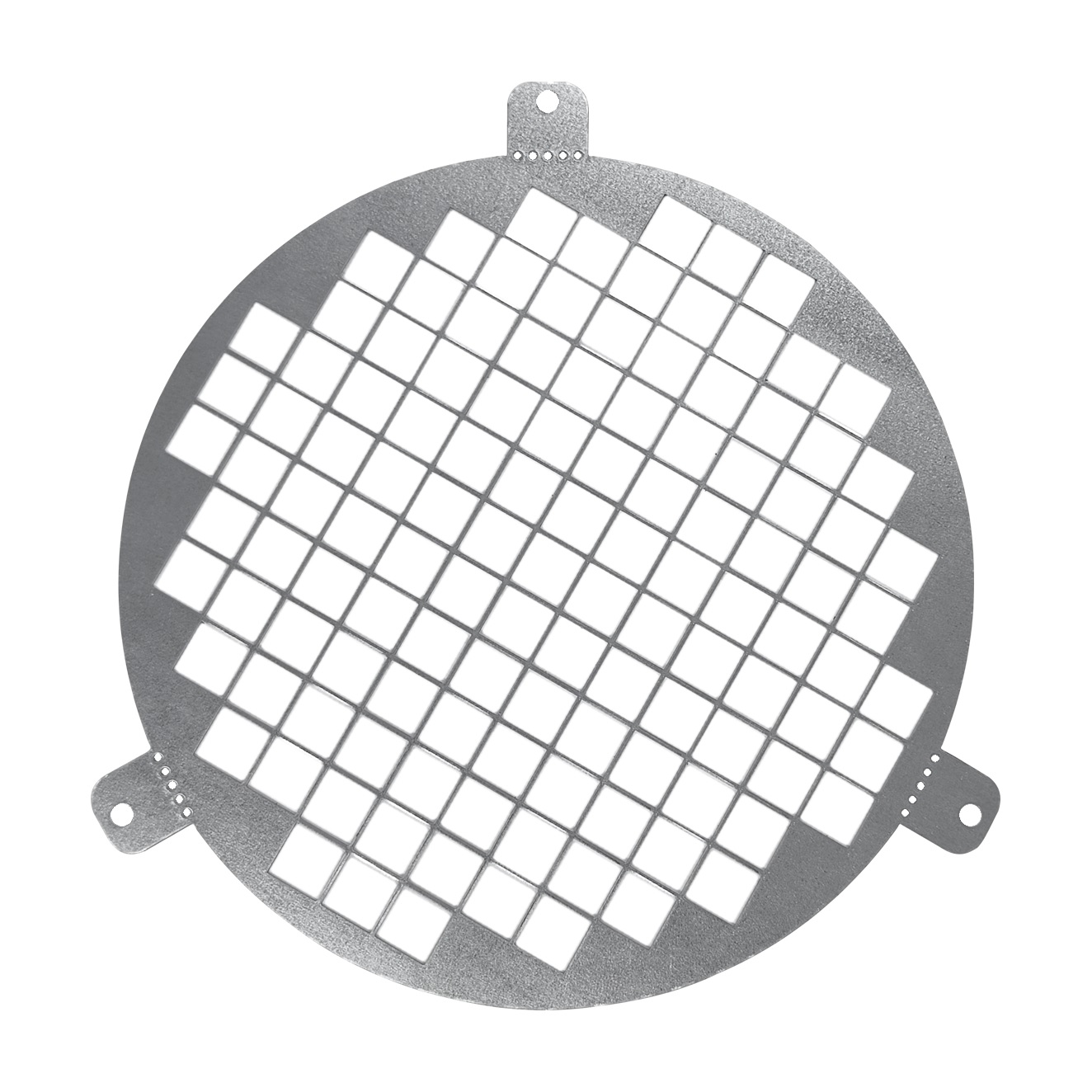

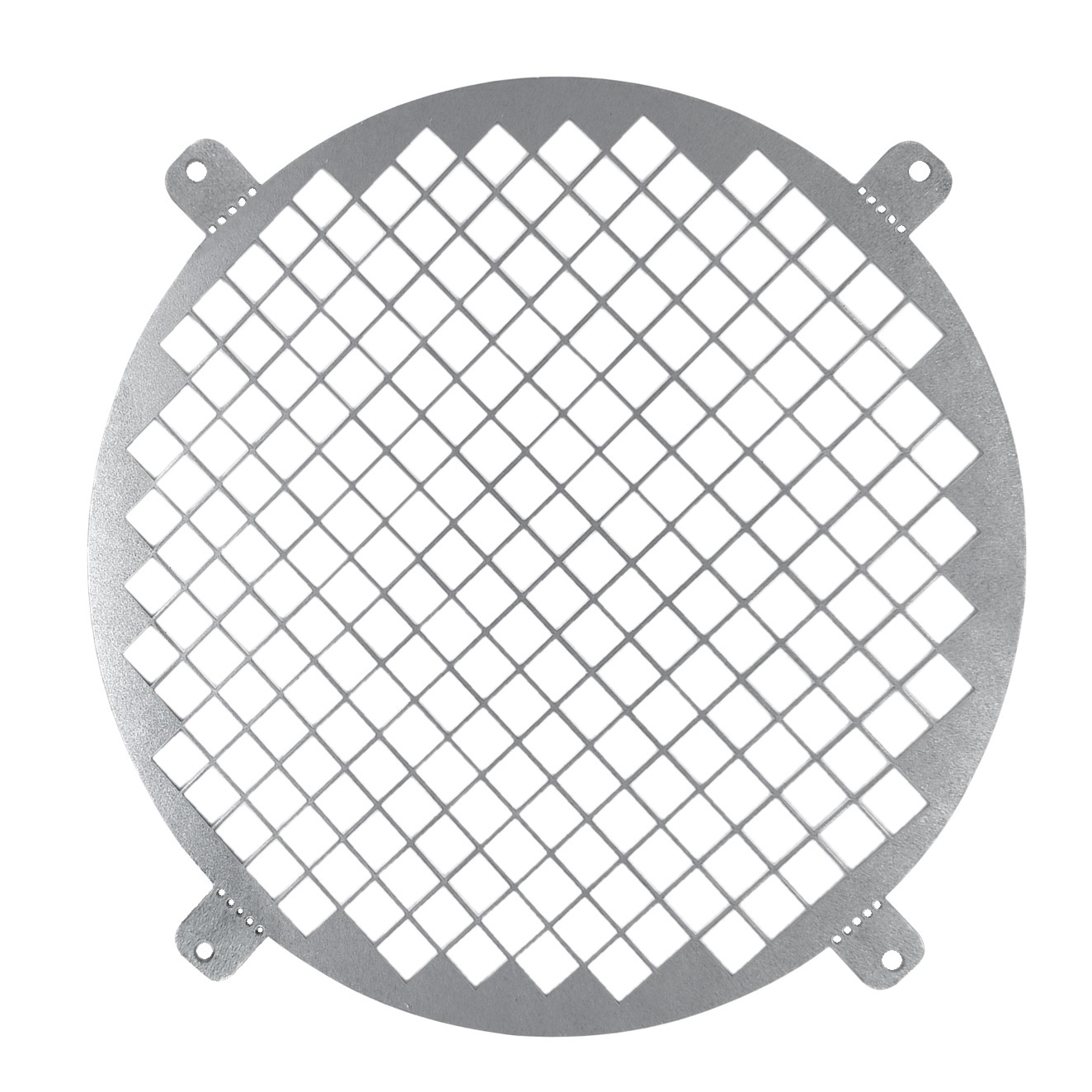

sieve - grille metal, Ø100mm, galvanized
|
4750492028414
|
Ø 100 mm |
|
LSM100
|

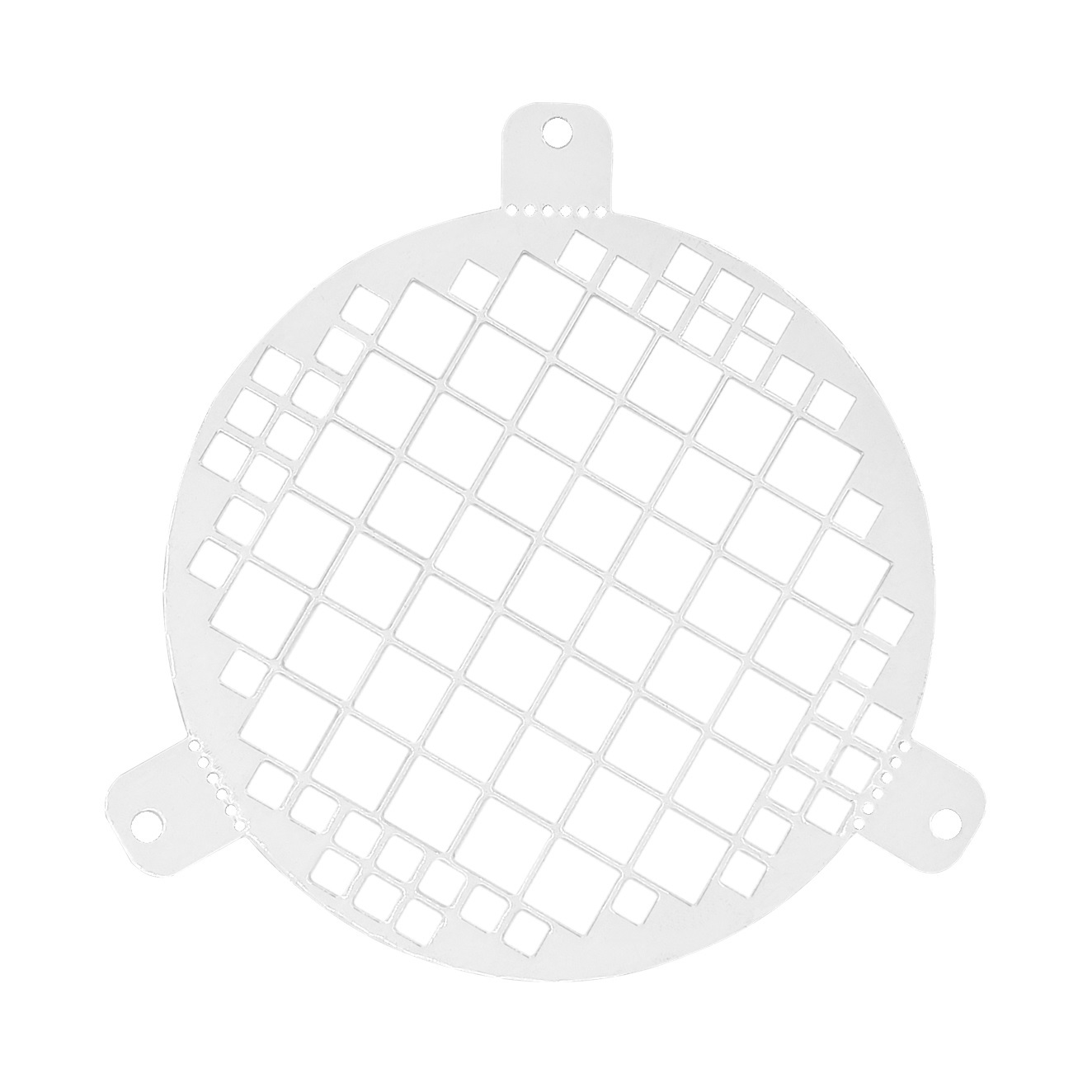

sieve - grille metal, Ø100mm, white
|
4750492028391
|
Ø 100 mm |
|
LSM125M
|
sieve - grille metal, Ø125mm, black
|
4750492028483
|
Ø 125 mm |
|
LSM125Zn
|
sieve - grille metal, Ø125mm, galvanized
|
4750492028421
|
Ø 125 mm |
|
LSM125
|
sieve - grille metal, Ø125mm, white
|
4750492028490
|
Ø 125 mm |
|

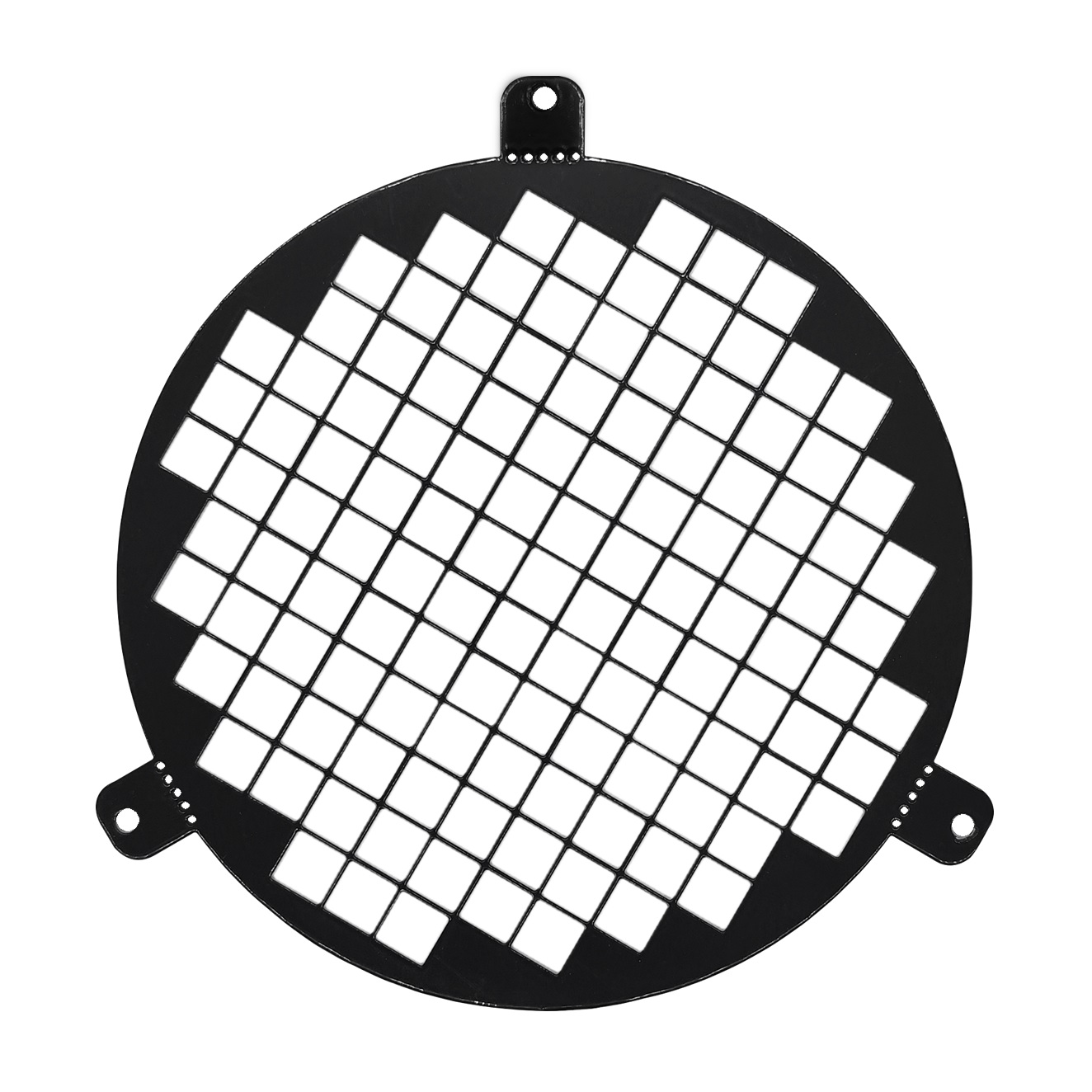

LSM150M
|
sieve - grille metal, Ø150mm, black
|
4750492029480
|
Ø 150 mm |
|

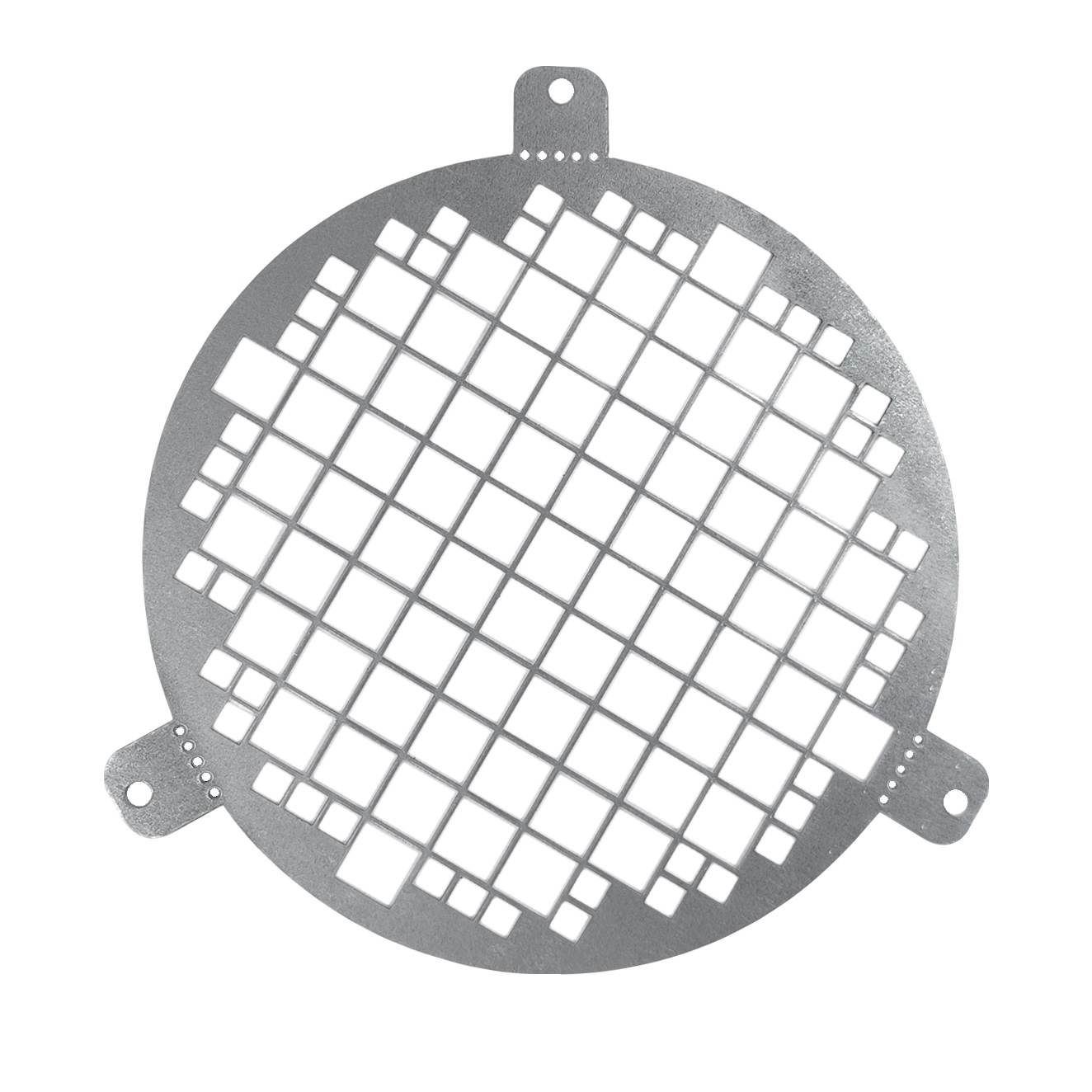

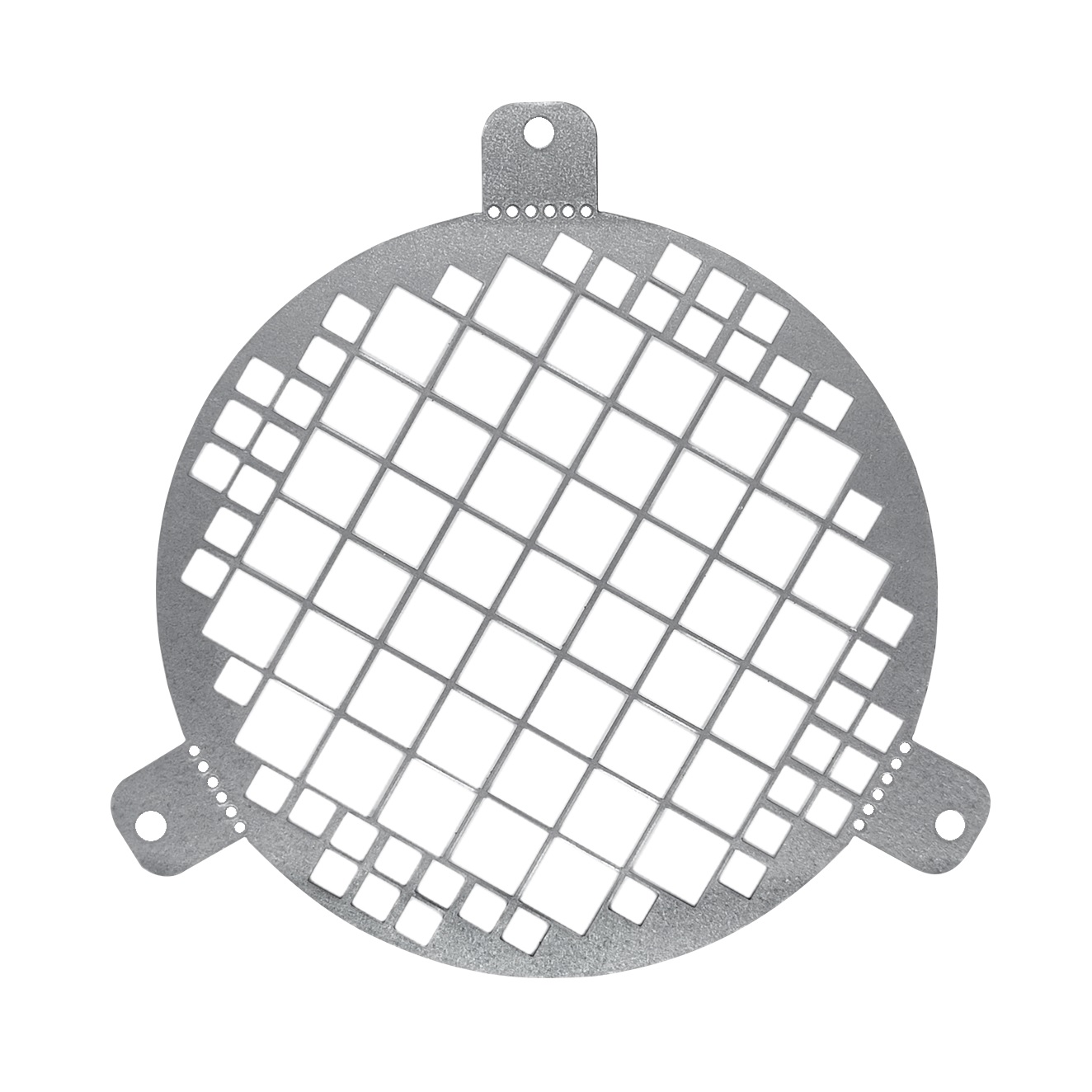

LSM150Zn
|
sieve - grille metal, Ø150mm, galvanized
|
4750492028438
|
Ø 150 mm |
|

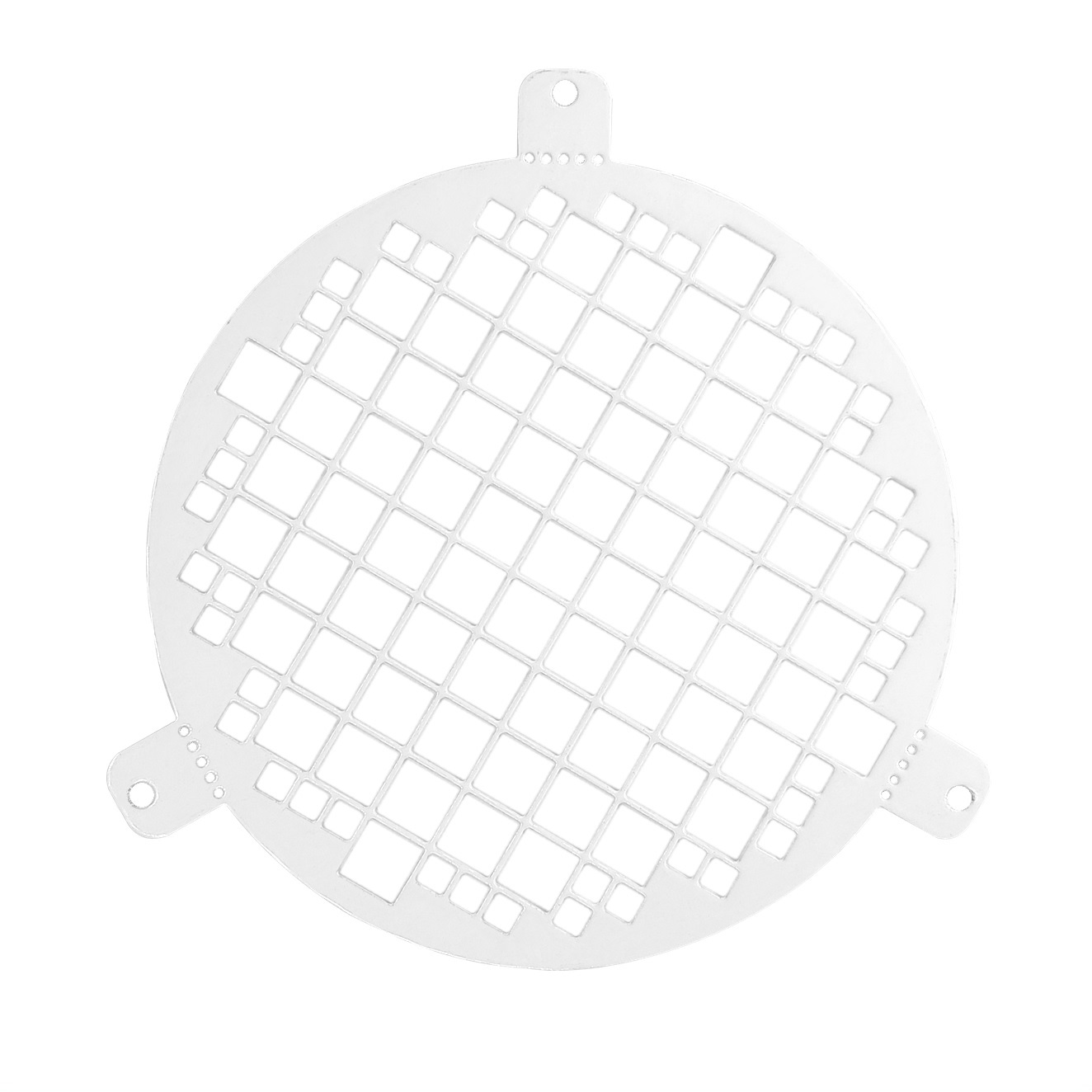

LSM150
|
sieve - grille metal, Ø150mm, white
|
4750492029428
|
Ø 150 mm |
|
LSM160M
|
sieve - grille metal, Ø160mm, black
|
4750492029497
|
Ø 160 mm |

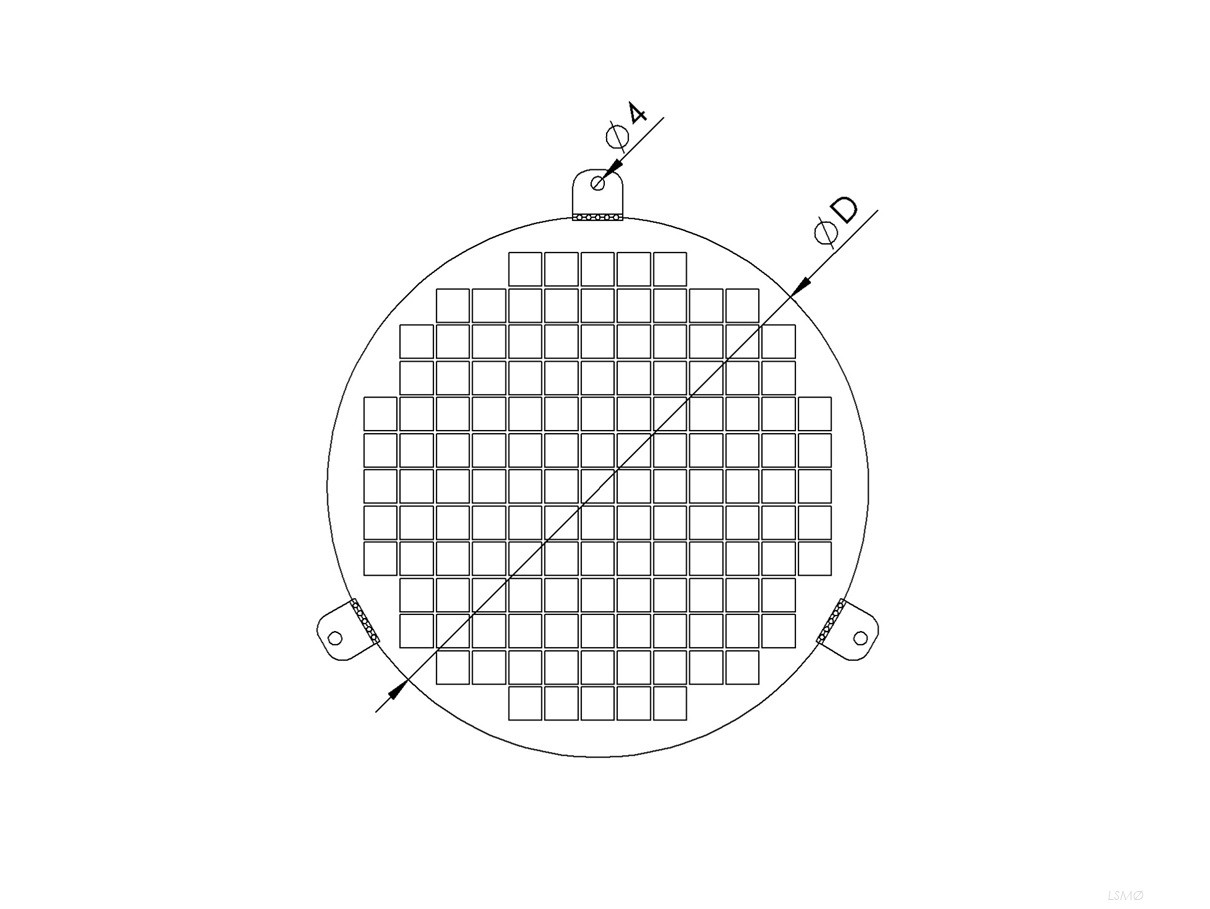

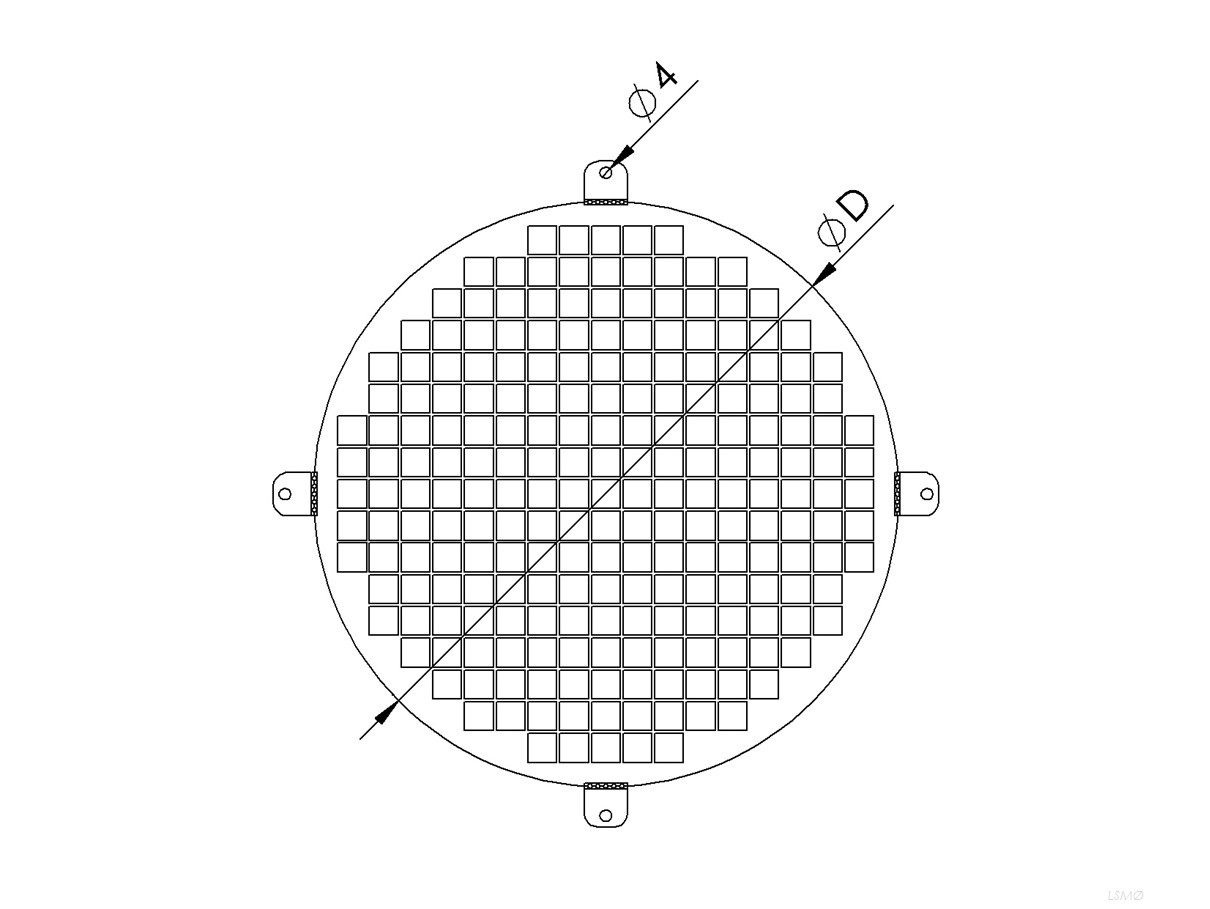

| Type | ØD [mm] |
Air pass [m²] |
Cell size [mm] |
m [kg] |
| LSM80 | 83 | 0,004 | 5x5 + 10x10 | 0,01 |
| LSM100 | 103 | 0,006 | 5x5 + 10x10 | 0,02 |
| LSM125 | 128 | 0,009 | 5x5 + 10x10 | 0,03 |
| LSM150 | 153 | 0,012 | 10x10 | 0,04 |
| LSM160 | 163 | 0,014 | 10x10 | 0,04 |
| LSM200* | 203 | 0,022 | 10x10 | 0,06 |
| LSM250* | 253 | 0,035 | 10x10 | 0,09 |
| LSM315* | 318 | 0,059 | 10x10 | 0,17 |

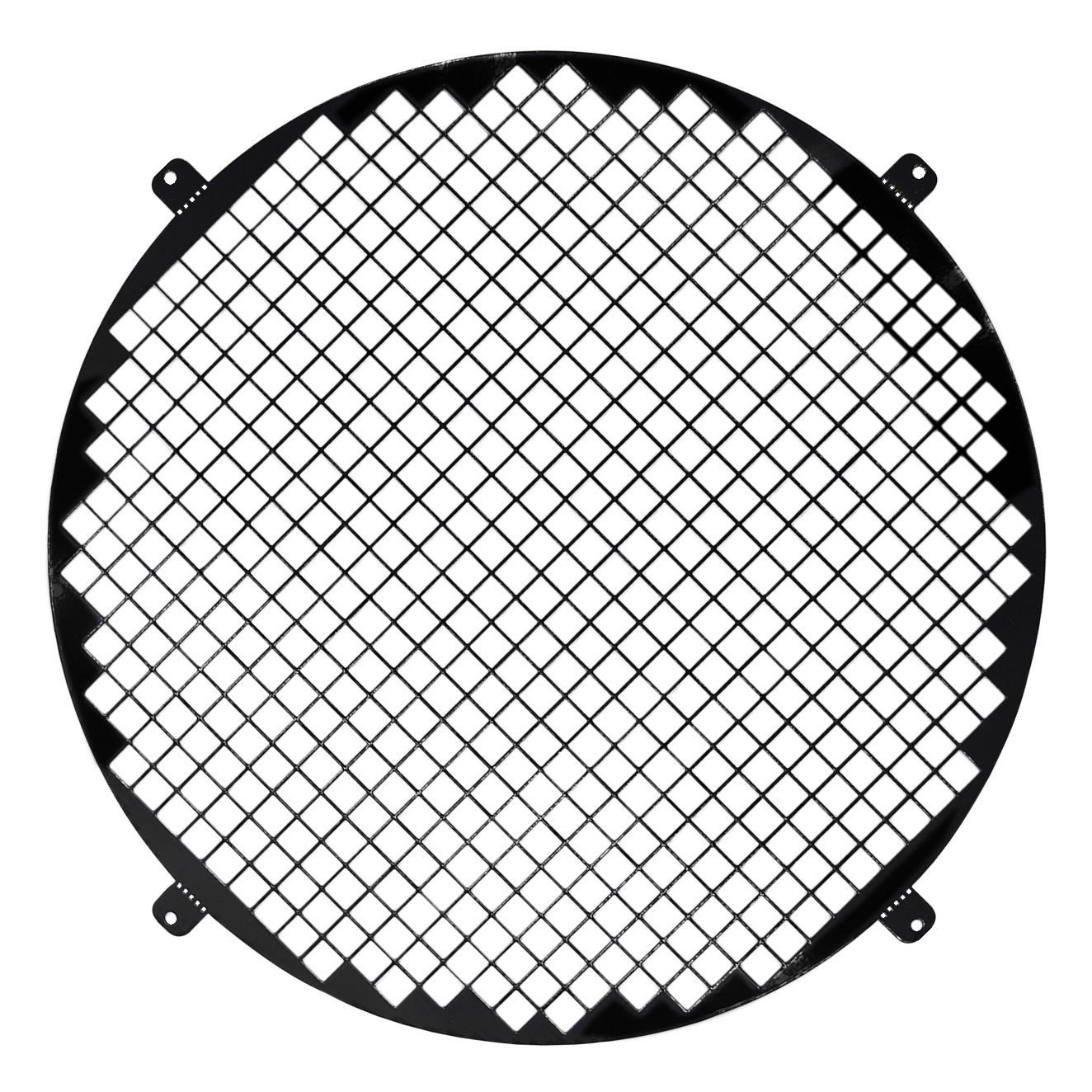

* Product with four mounting points
| Modifications |
| LSMxxx - white colour, polymer paint coating RAL9016 |
| LSMxxxM - black colour, polymer paint coating RAL9005 |
| LSMxxxZn - galvanized, unpainted |
| * LSMxxxB - brown colour, polymer paint coating RAL8016 |
| * LSMxxxP - grey colour, polymer paint coating RAL9006 |
| * LSMxxxY - beige colour, polymer paint coating RAL1015 |
| * LSMxxxA – anthracite colour, polymer paint coating |
| * LSMxxxCu - copper, unpainted |
| * LSMxxxAl - aluminium, unpainted |
| * LSMxxxi - stainless steel, unpainted |
* Not included in the main range. Available only on special order with a certain minimum quantity.
