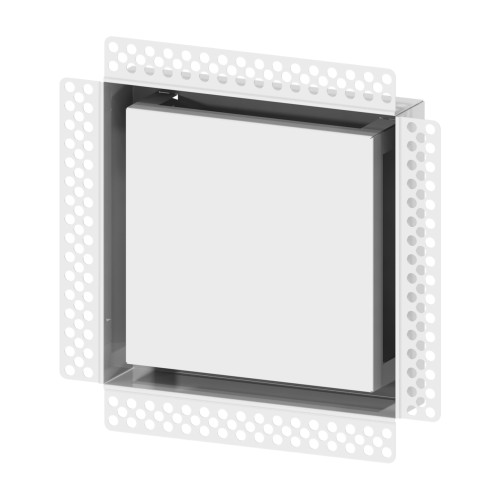

metal diffusers, flush-mounted ESDM
Construction:
- Made from galvanized steel or other metals
- Perforated metal frame
- Raised edge profile - for perfect application of plaster or joint compounds
- Easily removable front cover
- With polymer paint coating
Installation:
- Mounting in the wall or ceiling
- Fixed with screws and treatment with compounds
Colors: White, black, metallic
EUROPLAST universal flush-mounted metal diffusers ESDM are designed for permanent installation into ceilings or walls. The diffuser design provides a modern architectural finish and is suitable for painting, tiling, or covering with decorative materials. They are intended for interior finishing applications and are coated with a polymer paint coating that characterized by resistance to moisture and mechanical damage. These products are installed from the outer side of the wall or ceiling.
ESDM diffusers are equipped with a perforated metal frame that ensures better adhesion to plaster or joint compounds, as well as a raised edge profile for creating precise and straight finishing lines. The front cover is secured with an effective mechanism and can be easily removed for routine cleaning and maintenance.
| Description | Width | Height | Connection | Depth | |
|---|---|---|---|---|---|
ESDM1515-80M
|
diffuser metal, flush-mounted, 150x150mm - Ø80mm, black
|
150 mm | 150 mm | Ø 80 mm | 49 mm |
ESDM1515-80Zn
|
diffuser metal, flush-mounted, 150x150mm - Ø80mm, galvanized
|
150 mm | 150 mm | Ø 80 mm | 49 mm |
ESDM1515-80
|
diffuser metal, flush-mounted, 150x150mm - Ø80mm, white
|
150 mm | 150 mm | Ø 80 mm | 49 mm |
ESDM2020-100M
|
diffuser metal, flush-mounted, 200x200mm - Ø100mm, black
|
200 mm | 200 mm | Ø 100 mm | 49 mm |
ESDM2020-100Zn
|
diffuser metal, flush-mounted, 200x200mm - Ø100mm, galvanized
|
200 mm | 200 mm | Ø 100 mm | 49 mm |
ESDM2020-100
|
diffuser metal, flush-mounted, 200x200mm - Ø100mm, white
|
200 mm | 200 mm | Ø 100 mm | 49 mm |
ESDM2525-125M
|
diffuser metal, flush-mounted, 250x250mm - Ø125mm, black
|
250 mm | 250 mm | 49 mm | |
ESDM2525-125Zn
|
diffuser metal, flush-mounted, 250x250mm - Ø125mm, galvanized
|
||||
ESDM2525-125
|
diffuser metal, flush-mounted, 250x250mm - Ø125mm, white
|
250 mm | 250 mm | Ø 125 mm | 49 mm |
ESDM3030-150M
|
diffuser metal, flush-mounted, 300x300mm - Ø150mm, black
|
| Type | A [mm] |
B [mm] |
C [mm] |
ØD [mm] |
E [mm] |
F [mm] |
G [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| ESDM1515-80 | 211 | 211 | 151 | 85 | 151 | 120 | 120 | 49 | 2,2 | 0,49 |
| ESDM2020-100 | 261 | 261 | 201 | 105 | 201 | 170 | 170 | 49 | 2,2 | 0,75 |
| ESDM2525-125 | 311 | 311 | 251 | 130 | 251 | 220 | 220 | 49 | 2,2 | 1,06 |
| ESDM3030-150 | 361 | 361 | 301 | 155 | 301 | 270 | 270 | 49 | 2,2 | 1,43 |
| ESDM3535-160 | 411 | 411 | 351 | 165 | 351 | 320 | 320 | 49 | 2,2 | 1,88 |
| ESDM4040-200 | 461 | 461 | 401 | 205 | 401 | 370 | 370 | 49 | 2,2 | 2,34 |
| Modifications |
| ESDMxxxx-xxx — white colour, polymer paint coating RAL9016 |
| ESDMxxxx-xxxM — black colour, polymer paint coating RAL9005 |
| ESDMxxxx-xxxZn — galvanized, unpainted |
