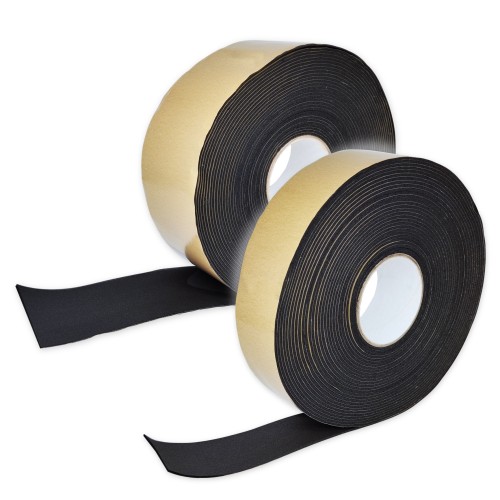

insulation adhesive tapes IF-LI
Construction:
- Made of flexible elastomeric foam (FEF) insulation
- Reinforced threads embedded
- With a paper layer for easier installation
Installation:
- Easy to install
- Saves installation time and space
- Ensures connection insulation
- Apply to surfaces with a temperature not lower than 4°C
Width [mm]: 50, 100
Length [mm]: 15 000
Colors: Black
EUROPLAST insulation tapes are designed for insulated air duct systems to cover insulation joints. The insulation tapes not only provide sound and thermal insulation but also serve as a protective barrier against thermal bridging and condensation. The properties of elastomeric foam make it easy to apply the tape to various joint configurations, ensuring a tight fit.
| Description | Width | Length | |
|---|---|---|---|
IF-LI100-15
|
insulation adhesive tape, 100mm x 15m
|
100 mm | 15 m |
IF-LI50-15
|
insulation adhesive tape, 50mm x 15m
|
50 mm | 15 m |
| Type | H [mm] |
T [mm] |
L [mm] |
m [kg] |
| IF-LI50-15 | 50 | 3 | 15 000 | 0,25 |
| IF-LI100-15 | 100 | 3 | 15 000 | 0,53 |
Material technical parameters
| Essential characteristics | Performance properties | Testing standard |
| Thermal conductivity coefficient | 0°C - 0,032 W/(m*K) | |
| Reaction to fire | B- s3, d0 | EN 13501-1 |
| Operating temperature | -20°C ... 110°C | |
| Density | 45-60 Kg/m³ | |
| Vapor permeability | > 70000 μ |
Adhesive technical parameters
| Essential characteristics | Operational properties |
| Operating temperature | -5°C ... 90°C stability, durability up to +130°C |
| Paper weight | 80 g/m² |
| Adhesive weight | 30 g/m² |
| Glue thickness | 0,03 mm |
