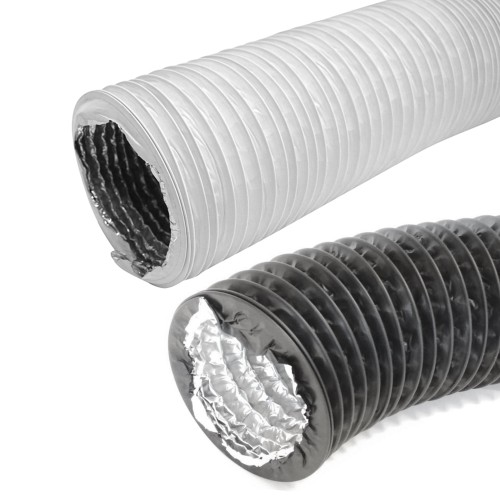

combyflex air ducts FC
Construction:
- Made from PVC, PET and aluminium layers
- With steel wire frame
Instalation:
- For duct fixing can be used special tapes or clamps
Temperature range (°C): -30 ... +140
Max air speed (m/sec): 30
Maximum pressure (Pa): 2500
Min. bend radius: 0,6 Ø
Sizes [mm]: Ø100; Ø125; Ø150; Ø160; Ø200; Ø250; Ø315
Length [m]: 1, 3
Colors: White, black
Flexible air duct Combyflex for heating, cooling, ventilation and air conditioning systems under low and medium pressure. Easy to install, keep properties during repeated compression.
| Description | Length | Connection | |
|---|---|---|---|
FC100-1
|
air duct wire-reinforced Combyflex, Ø100mm-1m
|
1 m | Ø 100 mm |
FC100-1M
|
air duct wire-reinforced Combyflex, Ø100mm-1m, black
|
1 m | Ø 100 mm |
FC100-3
|
air duct wire-reinforced Combyflex, Ø100mm-3m
|
3 m | Ø 100 mm |
FC100-3M
|
air duct wire-reinforced Combyflex, Ø100mm-3m, black
|
3 m | Ø 100 mm |
FC125-1
|
air duct wire-reinforced Combyflex, Ø125mm-1m
|
1 m | Ø 125 mm |
FC125-1M
|
air duct wire-reinforced Combyflex, Ø125mm-1m, black
|
1 m | Ø 125 mm |
FC125-3
|
air duct wire-reinforced Combyflex, Ø125mm-3m
|
3 m | Ø 125 mm |
FC125-3M
|
air duct wire-reinforced Combyflex, Ø125mm-3m, black
|
3 m | Ø 125 mm |
FC160-3
|
air duct wire-reinforced Combyflex, Ø160mm-3m
|
3 m | Ø 160 mm |
FC160-3M
|
air duct wire-reinforced Combyflex, Ø160mm-3m, black
|
3 m | Ø 160 mm |
| Modifications |
| FCxxx-x - white colour |
| FCxxx-xM - black colour |
| Type | ØD [mm] |
L [mm] |
m [kg] |
| FC100-1 | 102 | 1 000 | 0,15 |
| FC100-1M | 102 | 1 000 | 0,15 |
| FC100-3 | 102 | 3 000 | 0,38 |
| FC100-3M | 102 | 3 000 | 0,38 |
| FC125-1 | 127 | 1 000 | 0,16 |
| FC125-1M | 127 | 1 000 | 0,16 |
| FC125-3 | 127 | 3 000 | 0,60 |
| FC125-3M | 127 | 3 000 | 0,60 |
| FC160-3 | 162 | 3 000 | 0,58 |
| FC160-3M | 162 | 3 000 | 0,58 |
| FC200-3 | 202 | 3 000 | 0,76 |
| FC200-3M | 202 | 3 000 | 0,76 |
