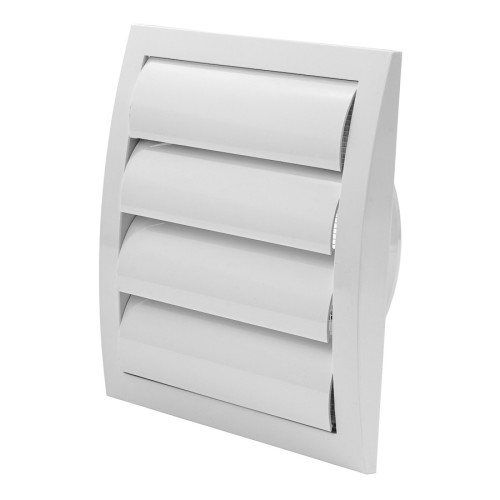

plastic grilles with shutters N-Z
Construction:
- Manufactured from high-quality ABS plastic
- With gravity blinds
- Equipped with an insect screen
Installation:
- Wall mounting
- Designed for outdoor use
- Screw or glue fixing
Colors: White, brown, grey, anthracite
EUROPLAST manufactured N-Z-series plastic ventilation grilles are made of high-quality ABS plastic and are long-lasting and temperature and UV-resistant. Grilles are intended to use as decorative and functional elements of outlets for exhaust ventilation systems. They are available in different colors and sizes. Ventilation grilles are equipped with an insect mesh.
Functions
Insect screen
Product is equipped with an insect mesh, which prevents insects from entering in to the ventilation systems.
| Description | Width | Height | Connection | Functions | |
|---|---|---|---|---|---|
ND10Z
|
grille plastic, 148x153mm, Ø100mm, with shutter
|
153 mm | 148 mm | Ø 100 mm |
|
ND10ZA
|
grille plastic, 148x153mm, Ø100mm, with shutter, anthracite
|
153 mm | 148 mm | Ø 100 mm |
|
ND10ZB
|
grille plastic, 148x153mm, Ø100mm, with shutter, brown
|
153 mm | 148 mm | Ø 100 mm |
|
ND10ZP
|
grille plastic, 148x153mm, Ø100mm, with shutter, grey
|
153 mm | 148 mm | Ø 100 mm |
|
N10Z
|
grille plastic, 148x153mm, with shutter
|
153 mm | 148 mm | - |
|
ND12Z
|
grille plastic, 190x190mm, Ø125mm, with shutter
|
190 mm | 190 mm | Ø 125 mm |
|
ND12ZA
|
grille plastic, 190x190mm, Ø125mm, with shutter, anthracite
|
190 mm | 190 mm | Ø 125 mm |
|
ND12ZB
|
grille plastic, 190x190mm, Ø125mm, with shutter, brown
|
190 mm | 190 mm | Ø 125 mm |
|
ND12ZP
|
grille plastic, 190x190mm, Ø125mm, with shutter, grey
|
190 mm | 190 mm | Ø 125 mm |
|
ND15Z
|
grille plastic, 190x190mm, Ø150mm, with shutter
|
190 mm | 190 mm | Ø 150 mm |
|
| Type | A [mm] |
B [mm] |
C [mm] |
D [mm] |
ØD [mm] |
E [mm] |
F [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| N10Z | 153 | 148 | 111 | 95 | - | 100 | 91 | 18 | - | 0,06 |
| N12Z | 190 | 190 | 140 | 140 | - | 137 | 132 | 18 | - | 0,10 |
| ND10Z | 153 | 148 | 111 | 95 | 99 | - | - | 48 | 30 | 0,09 |
| ND12Z | 190 | 190 | 140 | 140 | 124 | - | - | 48 | 30 | 0,14 |
| ND15Z | 190 | 190 | 140 | 140 | 149 | - | - | 48 | 30 | 0,13 |
| Modifications |
| Nxxx – white colour |
| NxxxP – grey colour |
| NxxxB – brown colour |
| NxxxA – anthracite colour |
| * NxxxM – black colour |
| * NxxxY – beige colour |
| * NxxxS – silver colour |
| * NxxxG – golden colour |
* Not included in the main range. Available only on special order with a certain minimum quantity.
