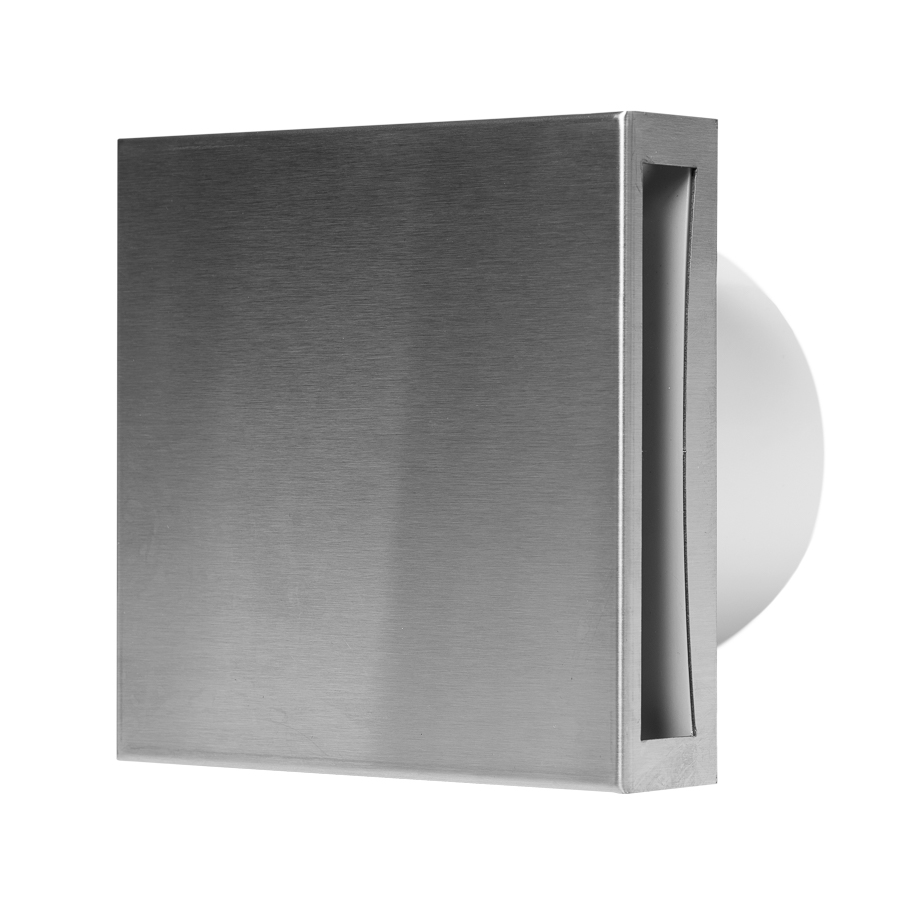

metal all-purpose diffusers DMT inox
Construction:
- Made from stainless steel alloy AISI304
- Adjustable air flow
- With mounting collar
Installation:
- Wall or ceiling mounting with all types of circular ducts
Colors: Stainless steel
Universal stainless steel metal diffusers for exhaust or supply ventilation with a laconic, straight front cover.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Article | Description | EAN | Connection | Functions | |
|---|---|---|---|---|---|
|
DMT100i
|
diffuser metal, all-purpose, Ø100mm, inox
|
4750492027806
|
Ø 100 mm |
|
|
DMT125i
|
diffuser metal, all-purpose, Ø125mm, inox
|
4750492027813
|
Ø 125 mm |
|
|
DMT150i
|
diffuser metal, all-purpose, Ø150mm, inox
|
4750492027820
|
Ø 150 mm |
|
|
DMT160i
|
diffuser metal, all-purpose, Ø160mm, inox
|
4750492027837
|
Ø 160 mm |
|
|
DMT200i
|
diffuser metal, all-purpose, Ø200mm, inox
|
4750492027844
|
Ø 200 mm |
|
| Type | ØD [mm] |
ØD1 [mm] |
ØD2 [mm] |
H [mm] |
H1 [mm] |
m [kg] |
| DMT100i | 96 | 140 | 168 | 56 | 9 | 0,30 |
| DMT125i | 119 | 172 | 206 | 57 | 11 | 0,41 |
| DMT150i | 144 | 218 | 261 | 73 | 16 | 0,51 |
| DMT160i | 154 | 218 | 261 | 73 | 16 | 0,52 |
| DMT200i | 194 | 293 | 352 | 92 | 16 | 1,14 |
- Used as exhaust valve:
_____________________________________________
- Used as supply valve:
